Budgetbeam

Clamp Attachment Set Screws Attachment

Welcome to the on-line Budgetbeam CLAMP Attachment shopping page.

Budgetbeam SET SCREW Attachment is on a separate shopping page.

Abssac uses the new Google CheckoutTM payment and order system, which is a new way to process on line transactions.

Customers who use Google Checkout can purchase goods quickly and securely, using a single user name and password. If you are a buyer who already has a Google Checkout account simply sign in - your payment and delivery information is already stored in your account. If you do not already have a Checkout account, you can create one.

One of the great advantages about Google checkout is that your credit/debit card is not charged until Abssac confirms that it can fulfil your order , which is done by email! Abssac will even advise by email when your goods have been despatched!

Please note that until further notice, the on-line budgetbeam product shopping is only available within the United Kingdom. If you are from outside of the United Kingdom or have requirements above 250 pieces please contact the sales department directly.

As always, if at any time you have any questions please do not hesitate to contact our sales department on 01386 421005.

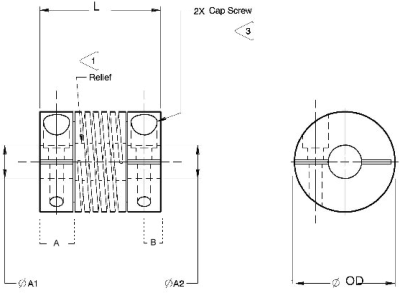

Dimensions for Budgetbeam Clamp Attachment

Clamp Attachment Image





Part Number Bore Combinations (mm) Bore .05mm/-0.00 A1 Bore .05mm/-0.00 A2 Torque (Nm) Torsional Stiffness (deg/Nm) Inertia (kgcmsec2) (10E-7) Weight (g) Outer Diameter (mm) L (mm) A (mm) B (mm) Screw Size Screw Torque (Nm)
ABC2M050 3mm-3mm 3mm-3mm 3mm 3mm 0.69 3.2 12.6 5.8 12.7 19.1 3.3 1.8 M1.6 0.4
ABC2M075 4mm-4mm 4mm-4mm 4mm 4mm 2.0 1.0 74.4 15 19.1 22.9 6.4 3.3 M2.5 1.3
ABC2M075 5mm-5mm 5mm-5mm 5mm 5mm 1.9 1.3 74.4 15 19.1 22.9 6.4 3.3 M2.5 1.3
ABC2M075 6mm-6mm 6mm-6mm 6mm 6mm 1.8 1.8 74.4 15 19.1 22.9 6.4 3.3 M2.5 1.3
ABC2M100 10mm-10mm 10mm-10mm 10mm 10mm 3.8 1.1 333 38 25.4 31.8 7.9 3.8 M3 2.5
ABC2M100 6mm-6mm 6mm-6mm 6mm 6mm 4.9 0.46 333 38 25.4 31.8 7.9 3.8 M3 2.5
ABC2M100 8mm-8mm 8mm-8mm 8mm 8mm 4.5 0.68 333 38 25.4 31.8 7.9 3.8 M3 2.5
ABC2M112 10mm-10mm 10mm-10mm 10mm 10mm 6.6 0.51 626 65 26.6 38.1 11.4 3.8 M3 2.5
ABC2M112 12mm-12mm 12mm-12mm 12mm 12mm 5.6 0.77 626 54 28.6 38.1 11.4 3.8 M3 2.5

Part Number 1-5 pcs 6-10 pcs 11-49 pcs 50-99 pcs 100-250 pcs Qty Required
ABC2M050 3mm-3mm £14.03 £12.47 £12.16 £11.84 £11.53
ABC2M075 4mm-4mm £14.60 £12.98 £12.65 £12.33 £12.00
ABC2M075 5mm-5mm £14.60 £12.98 £12.65 £12.33 £12.00
ABC2M075 6mm-6mm £14.60 £12.98 £12.65 £12.33 £12.00
ABC2M100 10mm-10mm £17.56 £15.61 £15.22 £14.83 £14.44
ABC2M100 6mm-6mm £17.56 £15.61 £15.22 £14.83 £14.44
ABC2M100 8mm-8mm £17.56 £15.61 £15.22 £14.83 £14.44
ABC2M112 10mm-10mm £20.32 £18.06 £17.61 £17.16 £16.71
ABC2M112 12mm-12mm £20.32 £18.06 £17.61 £17.16 £16.71
